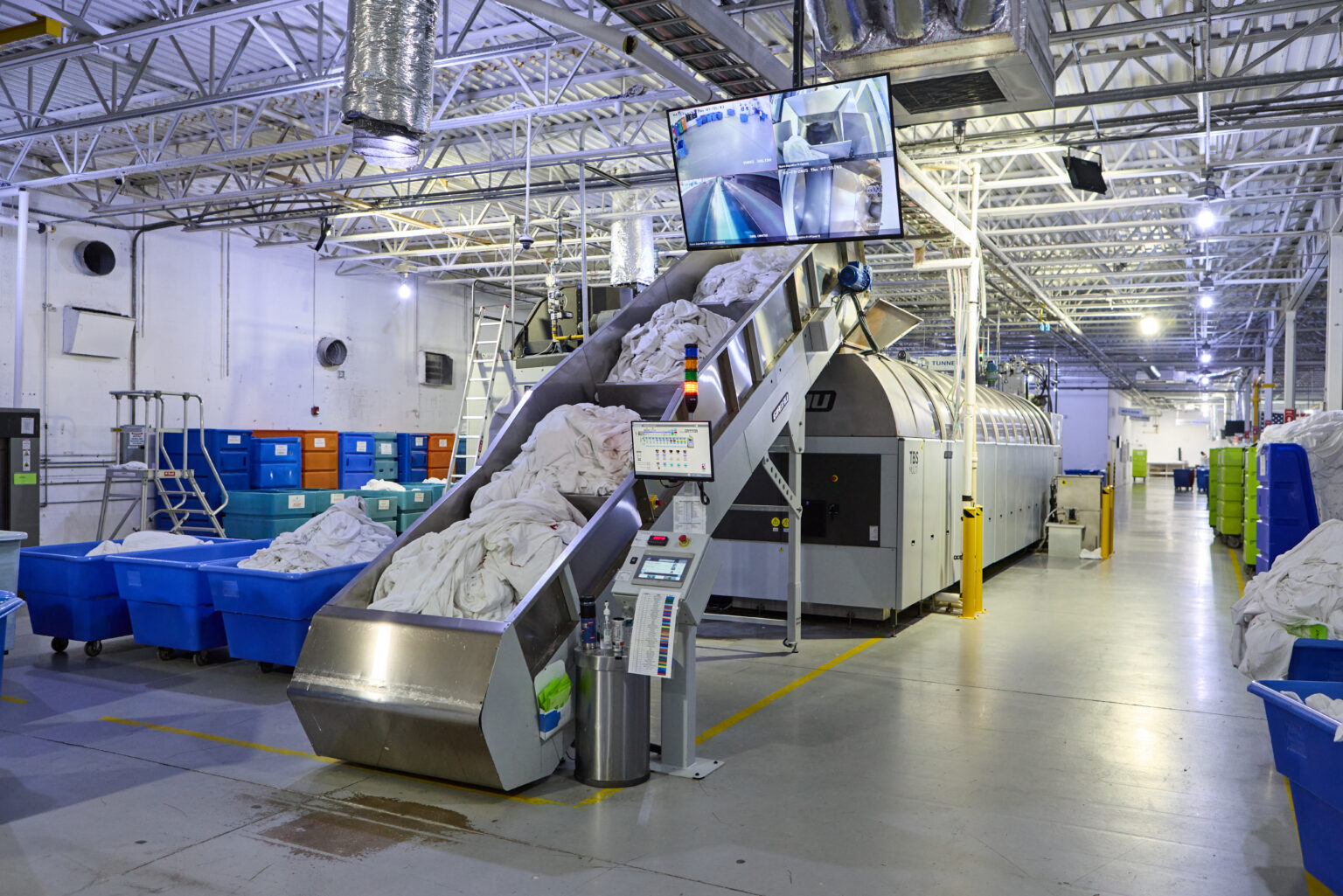

Girbau Industrial Continuous Batch Washing Systems
Engineered for performance and efficiency, Girbau Industrial’s Continuous Batch Washing System takes productivity to the next level—processing up to 3,000 pounds of laundry per hour with dramatically reduced labor, water and energy use. Perfect for medium- to high-volume operations, this fully integrated system combines intelligent automation and precise control through the Batch Management Tool (BMT), ensuring smooth, consistent results and maximum throughput every time.
High-Capacity. Energy-Efficient. Fully Automated.
Engineered for maximum productivity and minimal resource consumption, Girbau Industrial’s Continuous Batch Washing System processes up to 3,000 pounds of laundry per hour—using significantly less labor, water and energy. Ideal for medium- to high-volume laundry operations, the system seamlessly integrates washing, water extraction, drying and conveyor automation.
Powered by the intelligent Batch Management Tool (BMT), the system delivers unmatched programmability, real-time tracking, and effortless control of every system component.
Core Features & Benefits
- Modular design: 5–12 tunnel modules, 110 lb. each – fully programmable
- Efficient top-transfer technology prevents tangling & cross-contamination
- Proportional chemical dosing based on load weight
- Operates with just one operator
- Integrates with components from other manufacturers
- 50–60% water savings, 40% less chemical usage
- Energy recovery system reuses rinse water up to 3 times
- Steam injection sanitizes up to 176°F for hygienic laundering
- Remote support, diagnostics & monitoring
System Configurations
Choose the configuration that fits your operation:
- MultiTunnel – Standard modular tunnel system
- EcoTunnel – Optimized for water and thermal energy recovery
- HygienTunnel – Full disinfection for healthcare and cleanroom laundry
- FlexiTunnel – Fully independent modules for mixed-load processing
Seamless Automation & Control
Batch Management Tool (BMT)
Control every stage of the wash process from one interface. The BMT allows for up to 99 customizable programs, load tracking by customer, and real-time monitoring of temperatures, weights, cycle status, dosing, and more — all displayed via an intuitive color touchscreen.
Key System Components

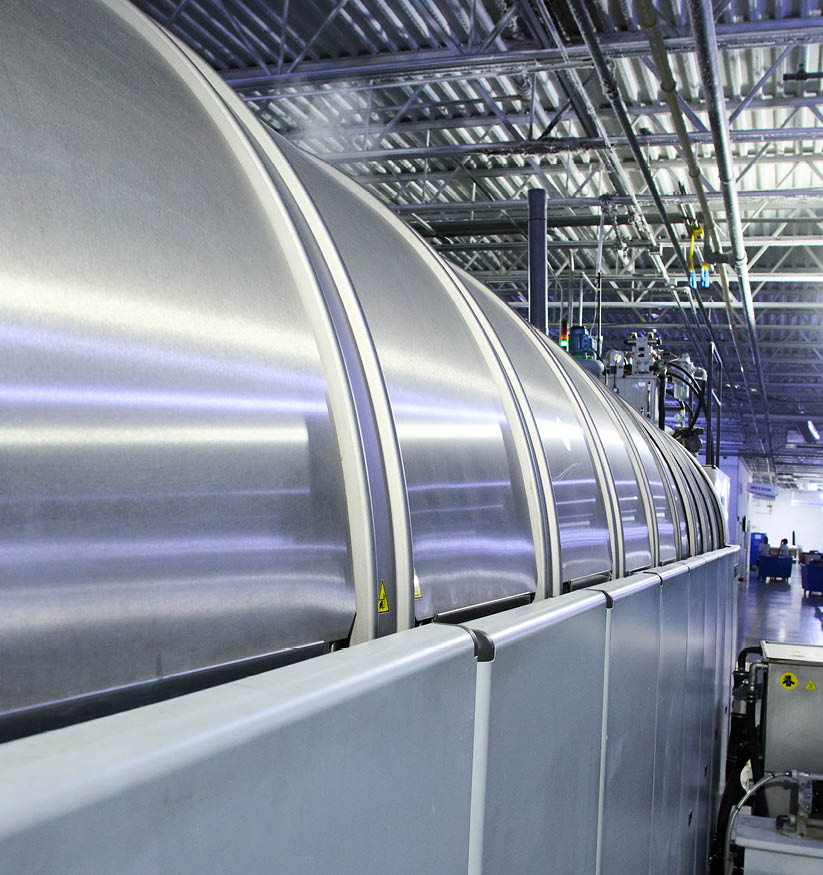

Tunnel Washers
Girbau Industrial’s TBS-50 Batch Washer – available in five- to 12-modules, each with 110 pounds of capacity – processes more than 3,000 pounds of laundry per hour! The TBS-50 integrates seamlessly with loading and unloading conveyors, the SPR-50 Water Extraction Press and ST-100 Series Continuous Dryers. The TBS-50 is an extremely flexible tunnel washer configurable to the needs of any high-volume laundry.

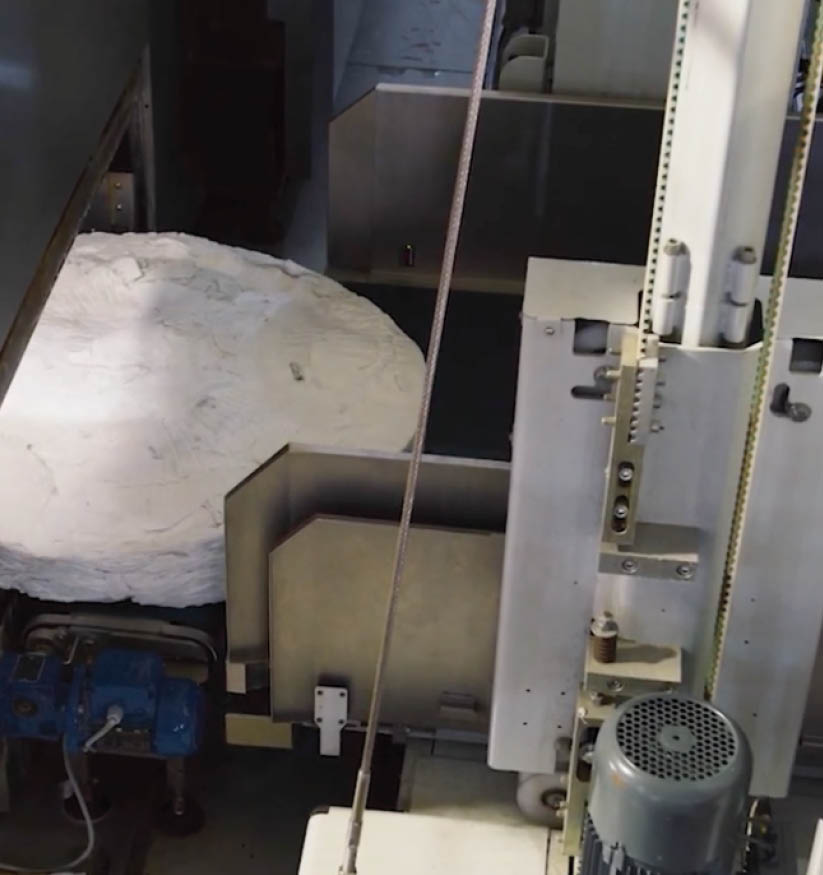

Extraction Technology
The SPR-50 Water Extraction Press applies hydraulic pressure to laundry exiting the batch washer. In doing so, it efficiently presses up to 110 pounds of linen into a round laundry “cake” with a flat base. Water is extracted from the linen quickly and gently – significantly shortening subsequent dry time and improving laundry productivity. From the SPR-50 Press, linen travels on conveyors and is automatically loaded into dryers. The SPR-50 is appropriate for all linen types.

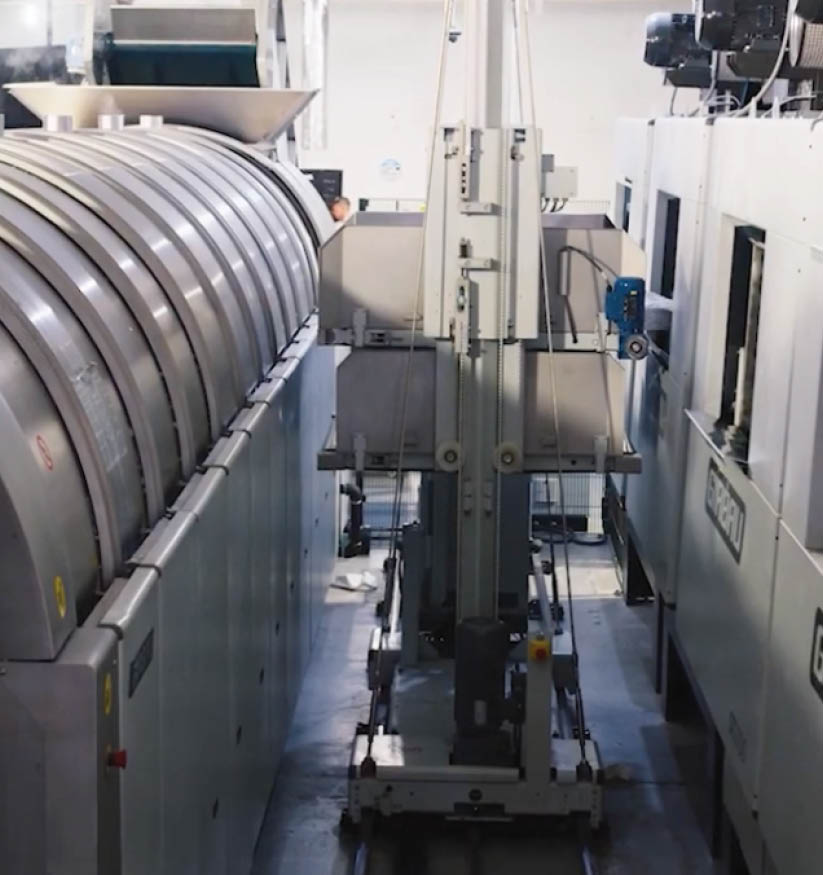

Conveyors
Girbau Industrial Shuttle Lifting Conveyors automatically move pressed “cakes” of laundry into up to six dryers. The Shuttle Lifting Conveyors – available to fit the specific needs of any high-volume laundry – feature one or two 43.3 x 50.4 inch loading tables capable of loading 220 pounds of laundry.

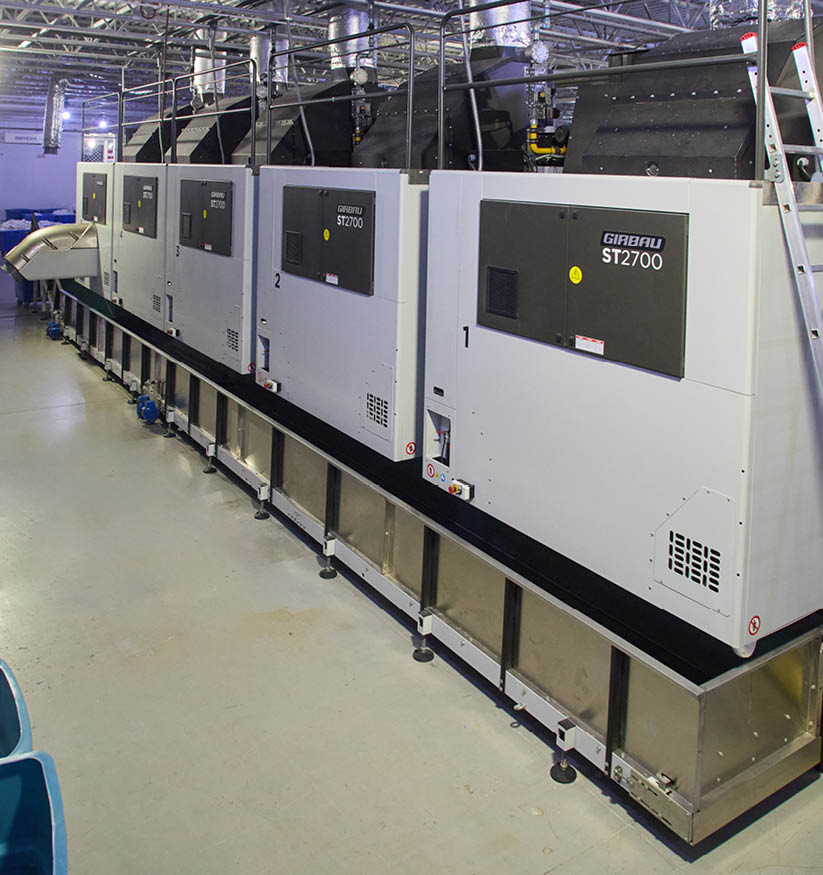

ST-Series Continuous Dryers
The ST-Series Dryers are engineered to unbind, condition and completely dry up to 298 pounds of linen per load, using less energy. They work seamlessly as part of the GI Continuous Wash System, or as a stand-alone dryers. Their robust heating system effectively circulates air through laundry while removing moisture inside the drum for a quicker dry. Each model offers Spirotilt technology for automated unloading without dryer tilting. Available in steam, natural gas or thermal fluid heat.
