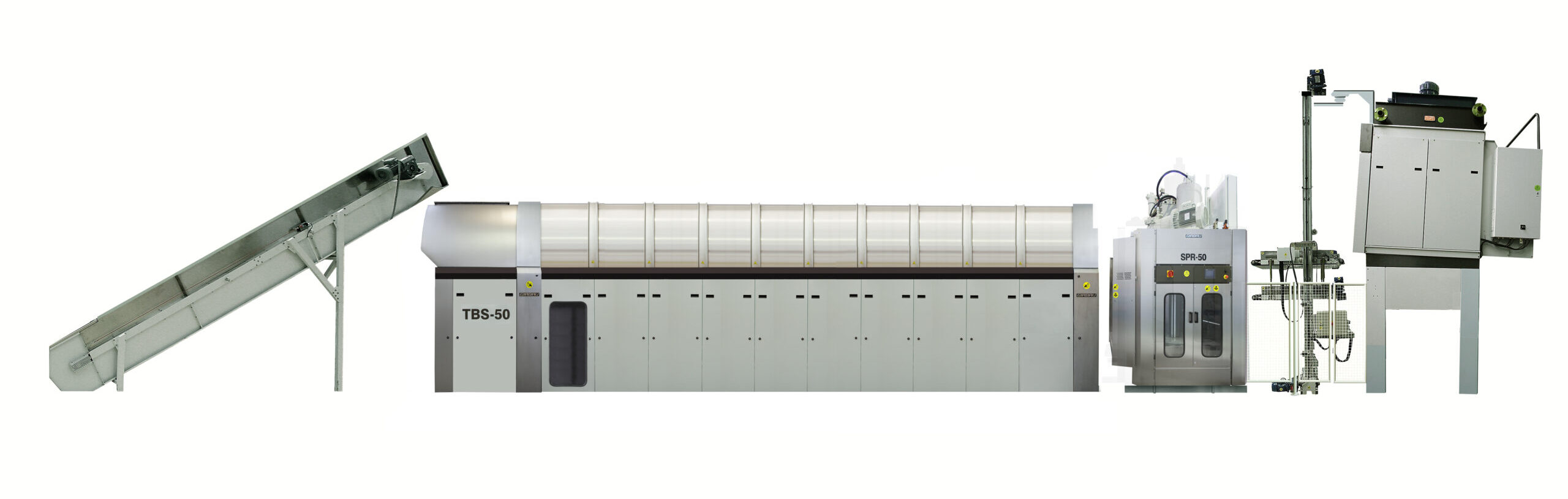

TBS-50 Batch Tunnel Washer
High-Volume, Energy-Efficient Batch Washing for Industrial Laundries
The TBS-50 Batch Tunnel Washer is the cornerstone of the Girbau Industrial Continuous Batch Washing System—specifically designed for high-throughput, high-performance industrial laundries. With a configuration of 5 to 12 wash modules (each handling 110 pounds of laundry), the TBS-50 processes up to 3,000 pounds of laundry per hour while cutting water, energy and labor costs. In addition, it ensures consistent quality every time.
Built with a robust mono-block design for easier installation and seamless operation, the TBS-50 outperforms traditional tunnel washers by offering unmatched programmability, flexibility and hygiene control. As a result, it’s backed by an industry-leading warranty. In fact, many laundries rely on it for daily operations.
Special Features:
- A Modular design with 5–12 wash modules, each with 110-lb. capacity
- Top-transfer technology minimizes tangling and eliminates bath mixing
- Proportional chemical dosing tailored to the actual load weight so that results are optimized
- Per-module control of wash settings: temp, cycles, inversion and dosing
- Compatibility with third-party systems and components for added flexibility
- Cuts water use by 50–60 percent and chemical use by up to 40 percent
- Energy recovery system reuses rinse water up to 3 times which saves costs

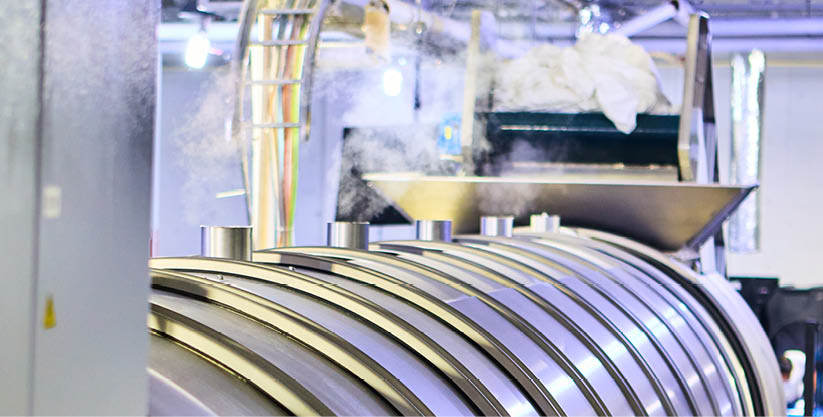

- Steam injection up to 176°F for certified hygienic laundering thus meeting strict hygiene standards
- Remote monitoring, diagnostics and support
- Fits into standard container for reduced shipping and faster installation
Machine Highlights

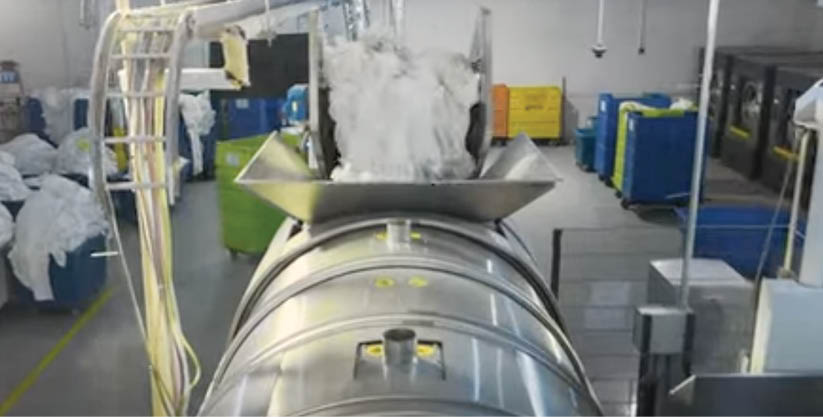

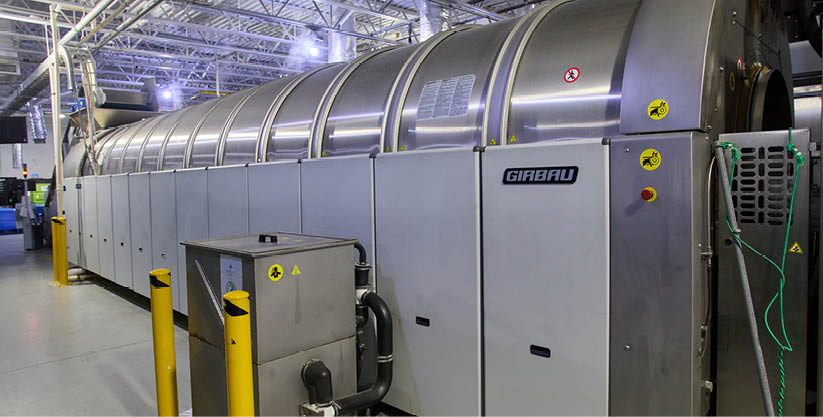

Dual Drum Technology for Maximum Control
The inner and outer drum construction of every module allows for precise bath control, programmability and complete isolation between loads. Along with this, each module can perform an independent bath exchange so that it matches specific laundering needs.

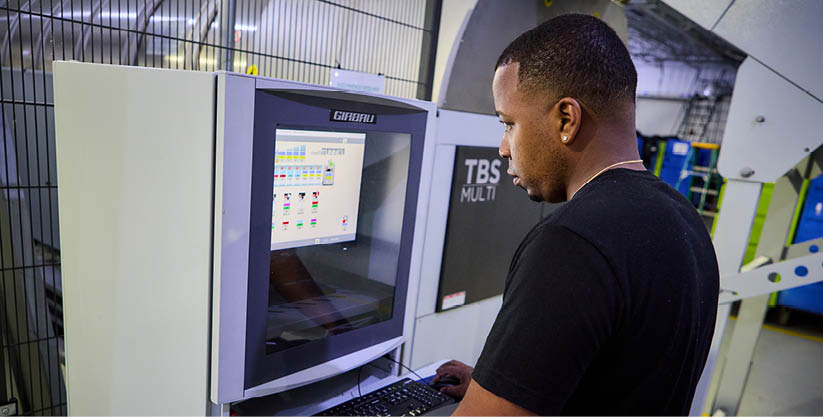

Advanced Programmability
Customize every phase of the wash cycle with 99 programmable settings across 999 client profiles. For instance, configure parameters like:
- Water temperature and levels
- Cycle duration and mechanical action
- Chemical dosing
- Drum inversion and bath partitioning
Top-Transfer System: No Cross-Contamination
Unlike bottom-transfer models, the TBS-50 uses a top-transfer design, which moves laundry without mixing water between modules. Moreover, sensors verify conditions before transfer, therefore ensuring smooth transitions and jam-free operation.
Disinfection & Traceability
Linens can be properly sanitized because the system is configurable. Specifically, steam injectors and intermediate filter tanks ensure particles from the rinse cycle aren’t recovered and reused in the wash process. Linens are washed at temperatures required for verified disinfection and hygiene compliance. In addition, the system allows full traceability of each load, including temperature logs, chemical dosing and cycle times for each batch.

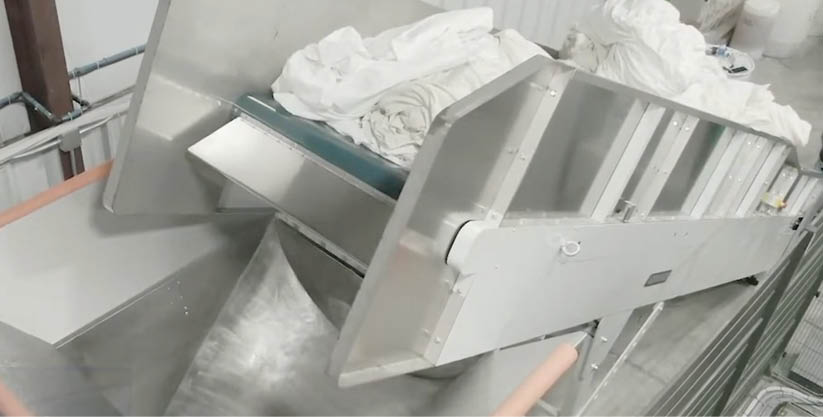

Water-Saving Innovation
Smart water reuse strategies drastically cut water usage. For example, fresh rinse water is applied to clean linens, while reclaimed rinse water is reused for initial wash phases, thus optimizing both efficiency and sustainability.

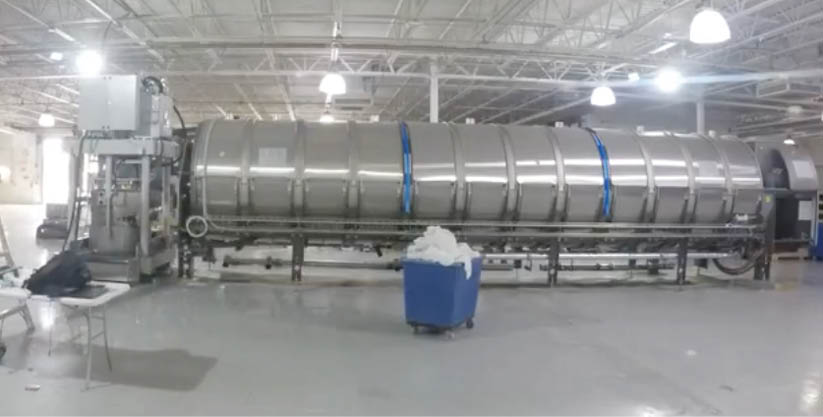

Streamlined Installation & Maintenance
Shipped fully assembled in a single container, the TBS-50 cuts shipping and setup costs. Its compact, dual-drum design delivers more power and quality in less space than bulky, single-drum alternatives. As a result, installation is faster and easier.

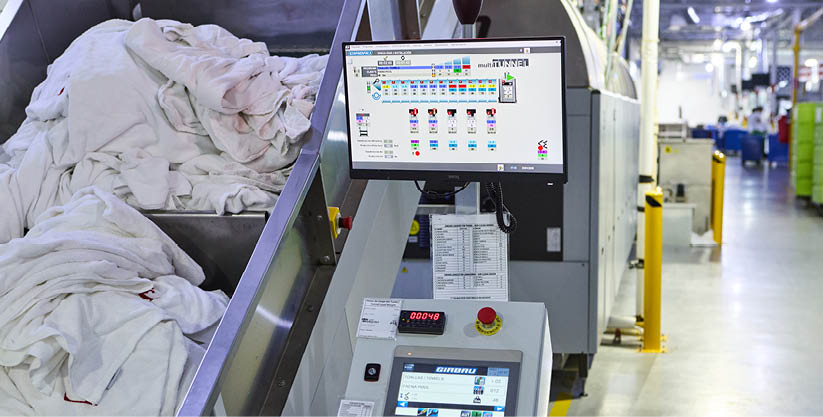

Total Control with the Batch Management Tool (BMT)
Get full visibility and control over your entire wash process from a single intuitive touchscreen interface:
- Monitor temperatures, weights, dosing, and cycle status in real time
- Customize up to 99 wash programs
- Track loads by customer for precise batch management and reporting
Designed for Performance. Built for Efficiency.
Whether you’re running a medical laundry, hospitality facility, or high-volume commercial operation, the TBS-50 Batch Tunnel Washer delivers the speed, hygiene, and sustainability your business demands. Furthermore, it adapts to your changing production needs seamlessly.
